150A High Precision Watt Meter Power Analyzer

150A High Precision Watt Meter Power Analyzer Battery Voltage Amplifier Meter

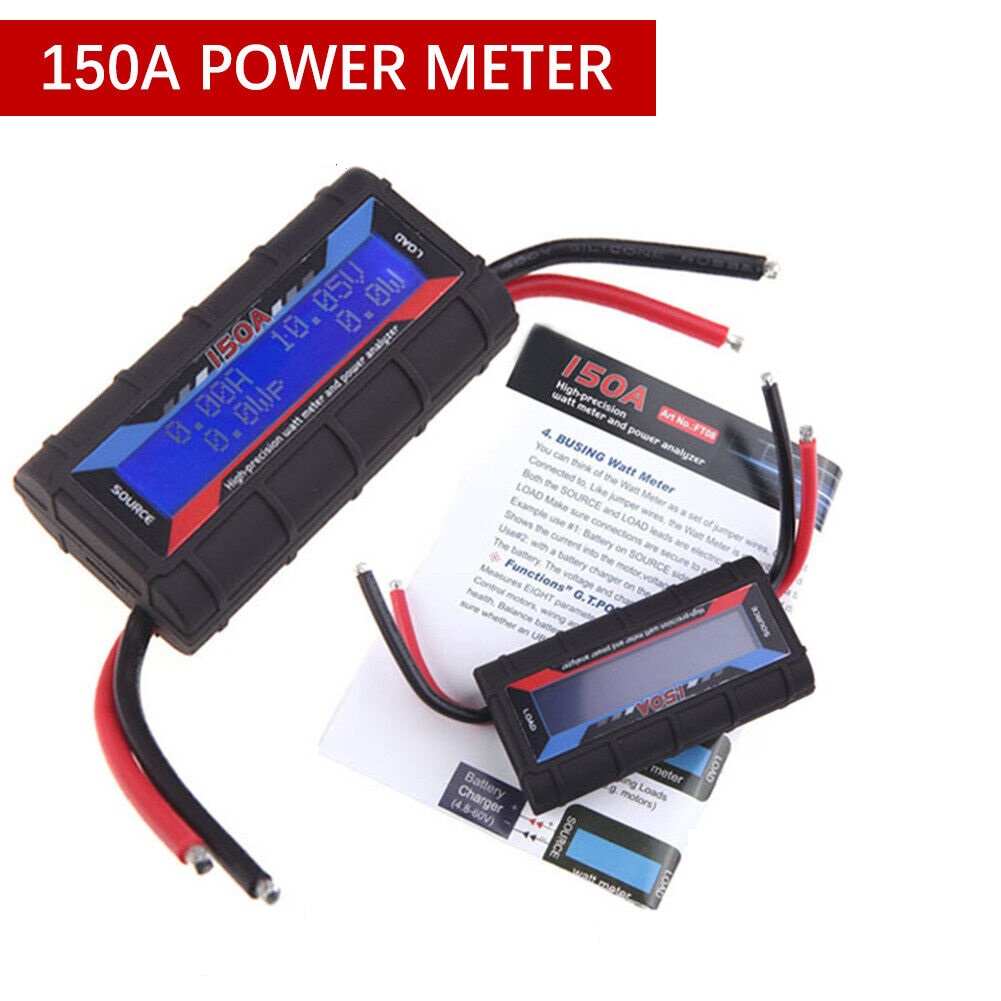

This is the all-in-one meter as it is capable of measuring 8 electrical parameters Perfect. The 150A High Precision WATT Meter And Power Analyzer Module is designed to be safe in systems using less than 60 V and carrying currents up to 150 A.
It measures 8 parameters so serves as a key to electric power safety & performance. Measuring Voltage (V), Current (A), Power (W), Capacity (Ah), and Energy (Wh), Minimum Voltage (Vm), Peak Current (Ap), and Peak Power (Wp).
A wattmeter is an essential tool for any drone builder. It will enable you to measure and monitor the performance of your motor/ESC/battery, and the electrical throughput/consumption of your powertrain. With this information, you’ll be able to select the most efficient prop/motor/ESC combination and more importantly, hopefully, avoid damaging your components before you go out to fly! If the wattmeter saves you just one motor or ESC, then it has paid for itself.
The meter features self-powering for measuring source, so you don’t need to worry about an additional power supply. It features 150amps and operational from 4.8-60V (0V with optional auxiliary battery input).
The meter is also easy to use, in fact, it doesn’t have a single button so there is nothing to set up. Values for Current (A), Voltage (V) and Power (W) are shown in real time, while Peak Amps (Ap), Peak Watts (Wp), Voltage Minimum (Vm). Also, Amp-hours (Ah) and Watt-hours (Wh) are shown sequentially every two seconds on a continuous cycle. These ‘data values’ (Ah, Wh, Ap, Vm, Wp) are reset on power up.

Specification:
Type: Watt Meter and Power Analyzer 150 Amps
Color: Black
Dimensions: 85x42x25mm
Material: Rubber Paint
Operates from 4.8v to 60v

Can measure down to 0v with optional auxiliary (great for stress-testing batteries)
Measures 0 to 150A with a resolution of 0.01A (50 Amp connectors for continuous – up to 150A for short peak bursts only)
Measures 0 to 60V with a resolution of 0.01V
Measures 0 to 6554W with a resolution of 0.01W
Measures 0 to 65Ah with a resolution of 0.001Ah
Blue back-lit 2.4″ LCD display
Handles 4 to 60 volts. Works on 4, 6, 12, 24, 36, and 48 volt battery bank systems.
Extremely low power consumption of 7 mA. More efficient than any LED meter.
Digital LCD LIGHT UP screen gives clear crisp number readings. BACK LIT.
Handles up to 150 amps intermittently and 75 amps continuous duty (48 Volts)
Microprocessor controlled produces extremely precise and accurate readings.
Amp Hours (Ah) – Total charge Ah delivered from source to load
Amp Peak (Ap) – Highest amp value delivered (typically startup cycle for inverters, compressors, fridges etc)
Amp (A) – Amps being delivered at that point in time
Voltage – Source voltage, and minimum Source voltage. Good for measuring voltage at lowest point of charge (eg minimum overnight voltage of car fridge battery)
Power (Watts) – Peak watts, Watts being delivered at that point in time
The meter can be “turned around” to measure charge going back in to the battery during a charging cycle. – In this instance, the charger (DCDC, Solar, Mains Battery Charger) is connected to Source, and the battery is connected to “Load”.

Charging Cycle Readings:
Amp Hours (Ah) – Total charge delivered to the battery
Amp Peak (Ap) – Highest charge delivered to the battery (Bulk charging)
Voltage – Point in time voltage from the Charger (charger is not over or under-charging)

Notes:
Other accessories demo in the picture is not included.
Due to manual measurement, please allow size differences about 1-5mm.
Due to the light and screen setting difference, the item’s color may be slightly different.

Package Included:
1pc x Watt Meter and Power Analyzer(Plug not included)
1pc x English User Manual
