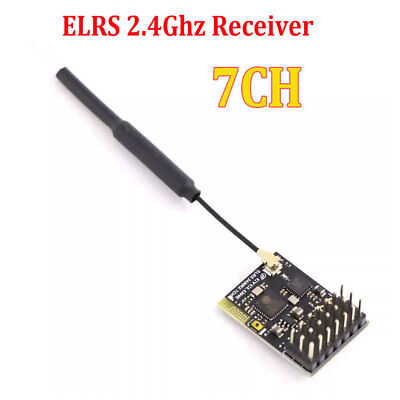

2.4Ghz 7CH PWM ELRS Receiver with Antenna

1,699.00 ৳

In stock

2.4Ghz 7CH PWM ELRS Receiver with Antenna

Description:
1. Specific for the Gliders and other fixed-wings.
2. Small in form factor, It can be installed in gliders with restricted payload bays such as DLG’s and high performance slopers.
3. Not needing to install an additional altimeter/variometer also saves room and weight.
4. The built in barometer provides vertical speed telemetry.
5. The variometer sounds both ascending and descending tones, so you will know whether you are in lift or sink without having to look at your transmitter.
6. with ExpressLRS firmware and CRSF protocol, this will also give you other telemetry data like battery voltage, current and GPS related.

ELRS 2.4G Receiver With Seven-Channel PWM Reception.
Independent PWM Channel Output, suitable for fixed wing vehicles, ships and other models installed.
It also supports CRSF output. The two output signals can be switched.
The PWM 6CH/7CH CRSF switch is easy to switch without rebrushing the firmware
Turn on the receiver WI-FI network,

1. Use the lua menu of the transmitter to activate the WI-FI of the receiver when it is connected to the high-frequency head
2. When the high-frequency head is not connected, power on for one minute, and the receiver automatically enters WI-FI

Search for WIFI on your computer or phone
WIFI hotspot name: ExpressLRS RX
Connection password (all lowercase) : expresslrs
The browser open http://10.0.0.1/hardware.html
Enter the ELRS hardware configuration page to import the hardware configuration file (Note: do not modify it before you fully understand the meaning of each parameter)
Import the configuration file we provided, PWM 7CH or CRSF, then click the button at the bottom of the page and wait for the receiver to restart itself

Specifications
Breeshy Type: 7-Channel ELRS24G PWM Receiver
Firmware Model:DIY2400RX PWMPEX
RF Frequency: 2.4GHz ISM (2400~2480MHz)
Antenna connector: IPEX MHF-1
Telemetry power: 12dbm
7x PWM outputs
PWM frequency: 50, 100, 160, 330, 400Hz configurable
PWM resolution: 4x 1024 position + 3x 128 position(ExpressLRS 2.0 Wide switch mode)
36V Max. battery voltage sense (1K:10K voltage divider built-in)
Compatible with external Current sensor (0~3.3V)
RxBt,Curr,Capa,Bat%,GPS telemetry and VSpd(Vario)
Rated voltage: 3.5~9V @5V pad, 0~36V @Vbat, 0~3.3V @Curr
Power dissipation: 50mA(binding), 90mA(wifi mode)
Failsafe value configurable
Firmware upgradeableWeight: 3.5 grams

Note:
Factory firmware is 3.2.0. your tuners firmware is lower than version 3.0, recommended that you update to version 3.2.0 to use 7 reported PWM channels. 2.X only has 4 channels with full ratio.
Due to different batches, the appearance of the product, color and print may occur, which will not affect the use.
Type: straight needle
Colour: Black
Material: PCB
Size: PCB Size: 18.5mm x 26mm

What you get:
1 x Receiver
1 x Copper Pipe Antenna
