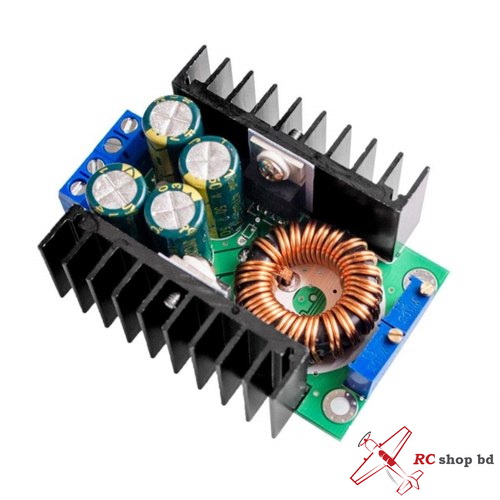

300W DC-DC Buck Converter
499.00 ৳
In stock
300W DC-DC Buck Boost Converter
Product Description
Input voltage: DC 7-32V
Output voltage: (1) DC 0.8-28V continuously adjustable. (2) Fixed output:Choose between 0.8v-28v
Output Current: 8A (when power tube’s temperature exceeds 65 degrees, please add cooling fan)
Output Power: Maximum power is about 300W
Output short circuit protection : Yes, Input reverse polarity protection: None
Features:
1. Fixed turn lamp current is 0.1 times the current value
( Used to identify whether the battery is fully charged When charging).
2. Made from a dedicated benchmark IC and high-precision current sensing resistor, proving a more stable
constant current, (when 20°C to 100°C constant current 1A, temperature drift less than 1%).
Particularly suitable for LED driver.
3. High output current, the max output current can reach 8A.
4. Four high frequency capacitance, can lower output ripple, enhance the work stabilization.
5. Double heat sink design. MOS schottky diode independent heat sink,which heat dissipation is good,
and won’t affect each other.
6. Using large size Sendust Core and double pure copper wiring, improve working efficiency, reduce fever.
7. 3296 multiturn potentiometer,high accuracy voltage and current regulation, good stability.
8. Double color lamp, working condition be clear at a glance
9. Voltage and current are adjustable,wich effect is good.
Applications:
1. High-power LED driver.
2. Lithium battery(or lead accumulator) charge.
3. Vehicle-mounted power supply.
4. Low voltage system power supply.
5. 6V, 12V, 14V, 24V battery charge.
6. On-board laptop power supply.
7. regulated power supply.
8.Low voltage power supply system.
