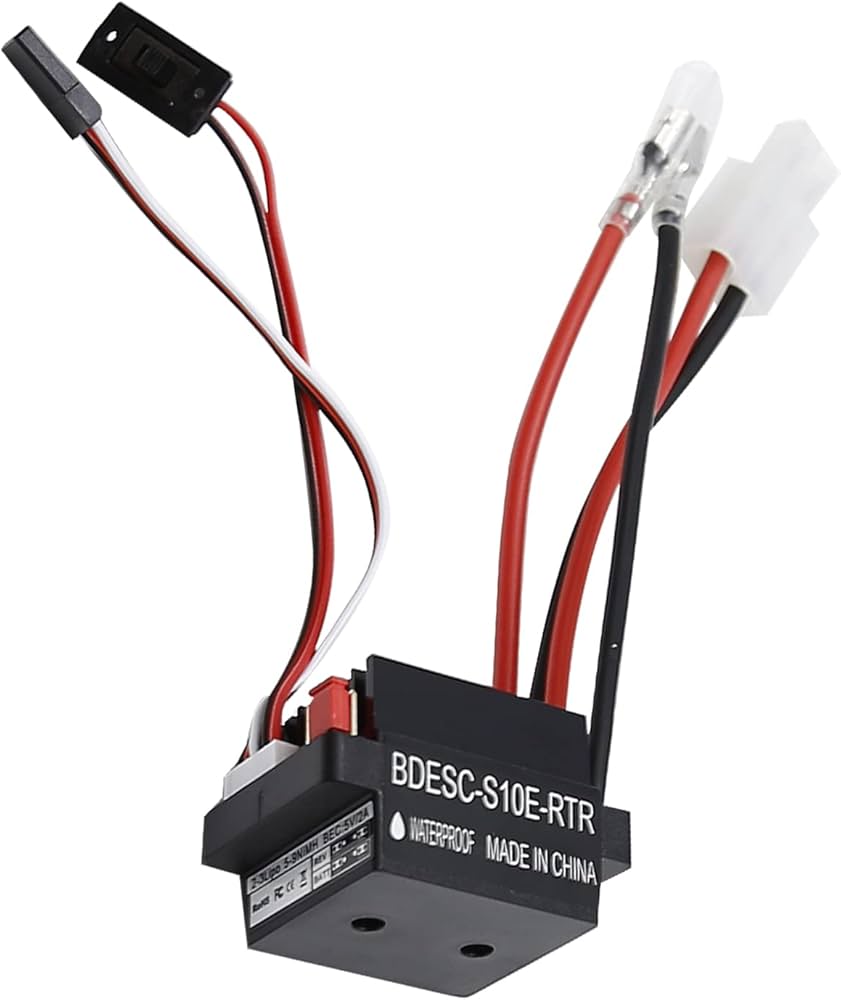

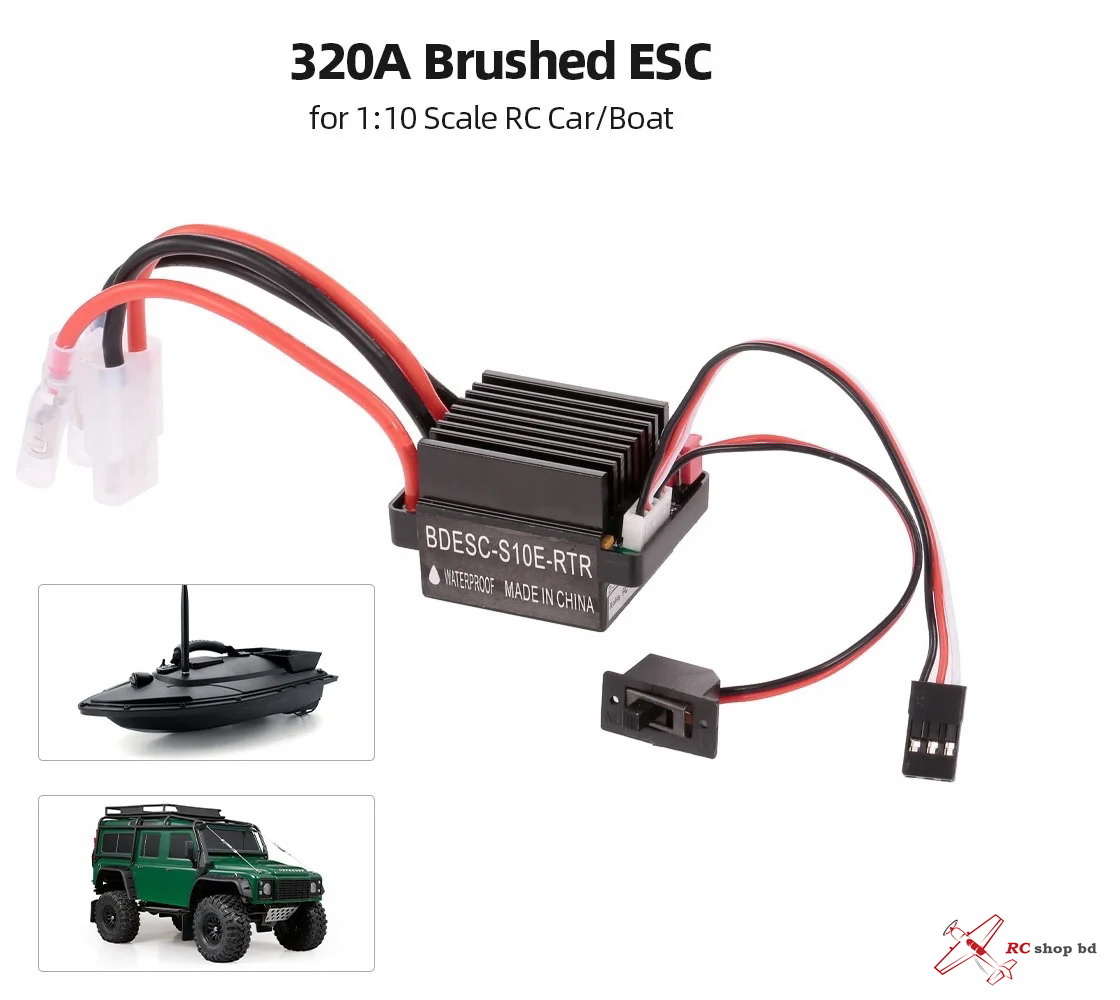

320A Brushed ESC for RC CAR/BOAT

999.00 ৳

In stock

320A Brushed ESC for RC CAR/BOAT

Description
HSP Henglong HPI 320A high voltage version with brush ESC remote control car two-way waterproof ESC supports 3S lithium battery
320A two-way high voltage version electronic governor with brake (with waterproof function)
Battery support: NiMH, NiCd 4~6 groups (4.8V~7.2V); Lithium battery 3 groups (6V-12V)
Current parameters: forward 320A, backward 160A, brake 270A,
BEC output: voltage 5.6V, current 2A. (Supply power for receiver and steering gear)

Features:
Automatically find the center position.
High-frequency drive system
Use low internal resistance field effect tube
Suitable for car and boat models

Operation guide:
Correctly connect it to the power supply battery, the red wire at both ends of the terminal board is the positive pole, and the black one is the negative pole. (or connect to standard DC battery plug Datian male plug/T plug/banana plug)
The red and black wires of the ESC output are respectively connected to the red and black wires of the motor of the car.
Turn on the power switch of the ESC, the motor will make a “beep” sound, and then turn on the power of the transmitter, the motor will make a “do~la~mi” sound, which proves that the remote control signal has been successfully connected to the ESC.

Package includes:
1 x 320A Brushed ESC
