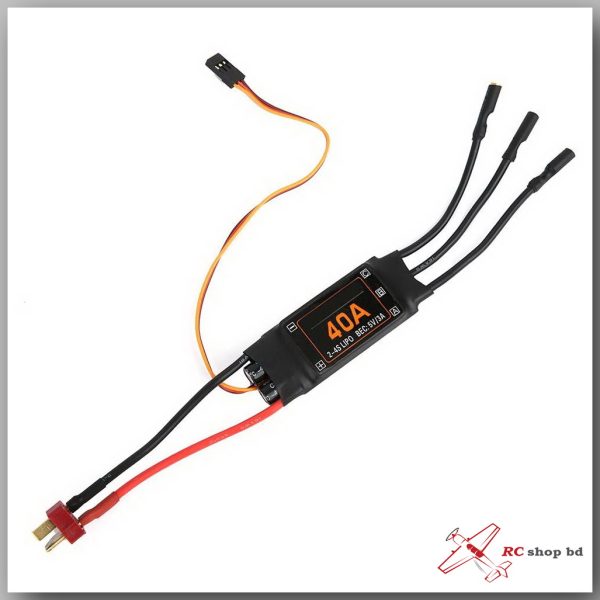

40A Brushless ESC 2-4S With 5V 3A UBEC For RC FPV Drone
699.00 ৳
In stock
40A Brushless ESC 2-4S With 5V 3A UBEC For RC FPV Drone
Functions:
– The timing can be changed to adapt it to different brushless motors.
– The specially optimized software is perfectly compatible with disc motors.
– Multi-rotor controller dedicated core program to meet various functional requirements of multi-rotor.
Specifications:
Colour: as shown in the picture
Cable Types: long
Current: 40 A
Size: 68x25x8mm
weight: 30g
Power consumption: 2-4 lithium batteries (not included).
BEC output: 5V@3A (linear control mode – linear mode)
Output capacity: continuous current 40A, short-term current 55A (less than 10 seconds).
Maximum RPM: 210,000 RPM for 2 pole motor, 7000 RPM for 6 pin motor, 35,000 RPM for 12 pin motor
Package includes:
1 x 40A Brushless ESC
| Type | With Connector, with out Connector |
|---|
