5.8G OTG FPV Camera Combo

5,500.00 ৳

Out of stock

5.8G OTG FPV Camera Combo
TS5828L 5.8G 40CH 600mW Video Transmitter + 5.8G FPV OTG Receiver VR Android Phone + 1000TVL FPV Camera

Specifications:

TS5828L 5.8G 40CH 600mW Video Transmitter:
Channel: 48CH
Frequency: 5.6G-5.9G
Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack
Power input: 7-12V (3S Lipoly suggested)
Transmitting power: 600mW
Antenna gain: 2dbm
Working current: 310mA at 12V
Video bandwidth: 8Mhz
Audio bandwidth : 6.5Mhz
Weight: 7g(without antenna)
Dimension: 23x 25x 7.7mm(excluding antenna)

5.8G FPV OTG Receiver:
Material: Plastic
Color: Black, White(Optional)
Frequency: 5645MHz~5945MHz
Resolution: 640*480 30fps
Working Current: USB 5V 190mA
Connector: RP-SMA
Working Temp.: -10°~65°
Size: 59 x 40 x 11mm / 2.30 x 1.56 x 0.43in
Weight: 29g/1.02oz

Features:
1.150CH 5.8Ghz analog signal, 1500 scans cover all bands.
2.Resolution 640*480 30fps.
3.Can display frequency spectrum, to check the signal strength of antenna or transmitter.
4.Support dual display on smartphone, can be used as VR goggles.
5.Please calibrate it in open area, and keep away from transmitter more than 30m. Long press the menu button and power on receiver, enter into calibration mode.

1000TVL FPV Camera:
Item Name: 1000TVL 1/3 CCD 110 Degree 2.8mm Lens Mini FPV Camera
Input Voltage: 5-20V
Power Consumption: 105mA-27mA
Lux: 0.08Lux/ F1.2
Sensor: 1/3 “CCD
Format: NTSC/PAL(Free switch)
Resolution: Ultra High Definition 1000TVL
PAL: 976H X 582V
NTSC: 976H X 494V
Lens: 2.8mm IR coated
FOV: 110 °
Operating temperature: 0 to 40°C
Screw of Lens: M12
Net Weight: 10.4g ( not included the box and cable)

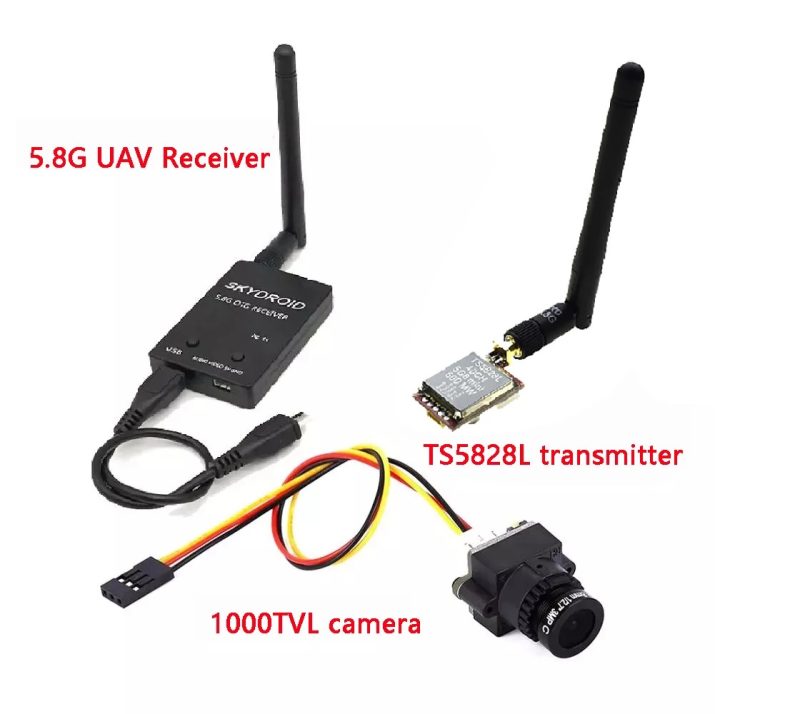

Package Included:
1 x TS5828L 5.8G 40CH 600mW Video Transmitter
1 x 5.8G FPV OTG Receiver VR Android Phone
1 x 1000TVL FPV Camera
