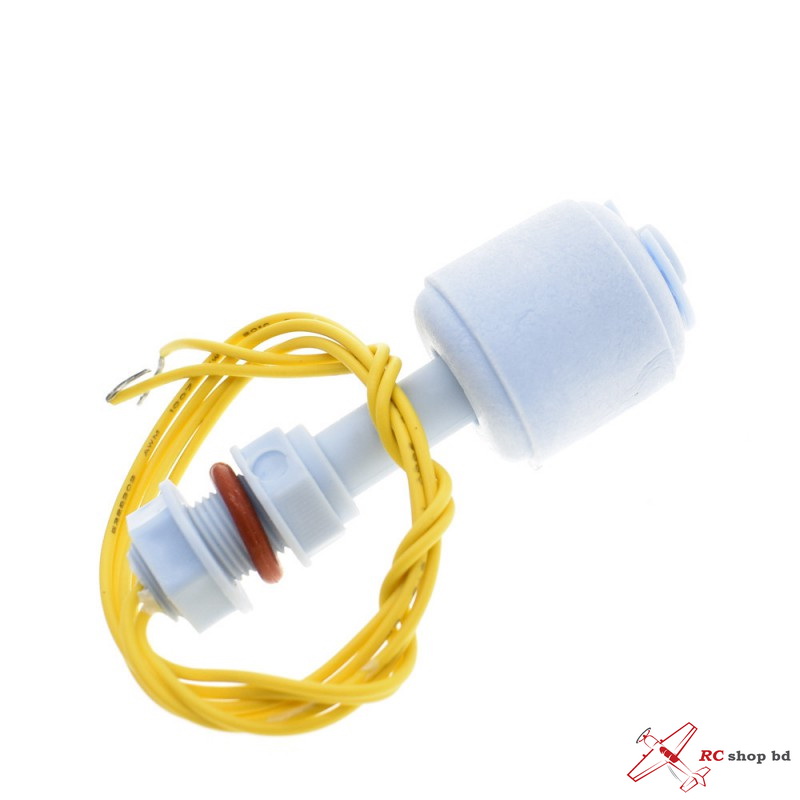

52mm Liquid Water Level Sensor
90.00 ৳
In stock
52mm Liquid Water Level Sensor
A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
Use them with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, pumps, ponds, basement alarms, boats, air condition drain pans, pressure washers, carpet cleaning mach, reef aquarium, fluid control, ice machines, coffee pots, marine, automotive, automobiles, tropical fish tanks, evaporator coils, condensation line, in relays, or what ever your project may be.
Water Level Sensor
Product details of Water Level Sensor Floating Switch
Max Contact Rating: 10W
Max Switch Voltage: 100V DC
Max Switch Current: 0.5A
Max Carry Current: 1.0A
Max Contact Resistance: 100mΩ
Temperature Rating: -10 ~ +85 Degree
Float Body Material: Plastic
Float Ball Size: 22.5 x 21.5mm (D*H)
Screw Thread Diameter: 9.5mm
Washered Nut Diameter: 14.5mm
Retaining Clip Diameter: 19.2mm
Body Total Length: 60mm
Cable Length: 24cm
Color: Black & White
Weight: 17g
Package Content:
1 x Water Level Sensor
