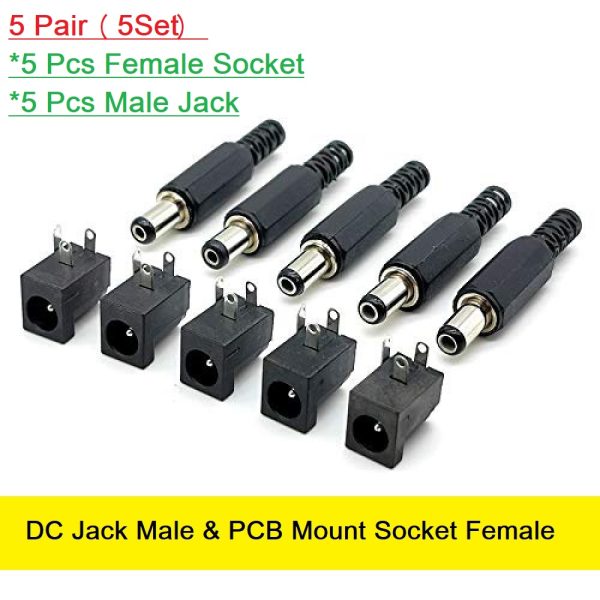

5Pair PCB Mount Female Socket & 5V 12V 24V DC Jack Male

5Pair PCB Mount Female Socket & 5V 12V 24V DC Jack Male

Description:
5V 12V 24V DC Jack Male & PCB Mount Socket Female DC Power Jack 2.1mm Plug Socket Power Supply For Led Strip CCTV Security Camera Cable Barrel Adapter

This 5.5mm/2.1mm barrel plug (male) if you want a DC power connector that runs off a battery pack or wired power supply. There is a 5.5/2.1mm DC plug on one end, and a screw terminal block on the other. The terminals are labeled with positive/negative assuming a positive-tip configuration (which is the most common). Simply hook up your selected power supply to the terminal points and you have DC power Plug with the output of your choice!

This is a common barrel-type power socket for DC power supplies. These are compatible with our DC power supplies and have a 2.1mm diameter center pin.

Made of plastic and metal material, this PCB mounting socket will be an ideal item to replace the broken 5. 5mmX 2. 1mm PCB socket. Fit for tablet PC charging.

Features:
Quality: High
Rated Voltage :30V.
Rated Current :1A.CS.
Made of plastic and metal material, this PCB mounting socket will be an ideal item to replace the broken 5.5x 2.1mm PCB socket.
Fit for tablet PC charging.
Includes mounting nut
Solder termination
Flush mounting
Widely used in small-scale as well as prototyping projects where 12 to 30 volts power supply needed
Application to Media Player, MP3 Player, MP4 Player, Audio-Video Equipment, AV Equipment, Note Book, Mobile Phone, PDA, Car Audio etc.
Double layer
great connection for Power, LED, CCTV Camera, Audio & Video
Easier for camera installation
Simply & Professional appearance for power cabling
Reliable connect, good performance
Each item is tested before shipping and are 100% working

Technical Information Panel Mount Female Socket:
Material : Metal, Plastic.
Model: DC-005.
Main Color: Silver Tone, Black
Connector Type: 5.5 x 2.1mm.
Pin: 3 Pin.
Rated Voltage :30V.
Rated Current :1A.
Insertion and Extraction Force: 5-20N.
Operating temperature range :0-65 Degree Centigrade.
Service Life: 5000 times.
Size:14 x9 x15mm
Net Weight: 9g;

Technical Information Male Jack :
5.5mm OD 2.1mm ID Barrel Plug (Male)
Plug Size: 2.1mm
Center Pin: 2.1mm
Outer Diameter: 5.5mm
Over All length: 45mm
Weight: 7gm
Applications:
Power supplies for Arduino
Single Color LED Strip Light
CCTV Security Camera
DC or AC Cameras
Simply & Professional appearance for power cabling.
Easier for camera installation, save time and more securer cable connection.
For 5V 12 V 24 V vdc Volt Power Supply CCTV Cable Connection Led Strip Extender Video Security Camera DIY Board
