Aocoda-RC F7 DUAL Flight Controller
4,999.00 ৳
Out of stock

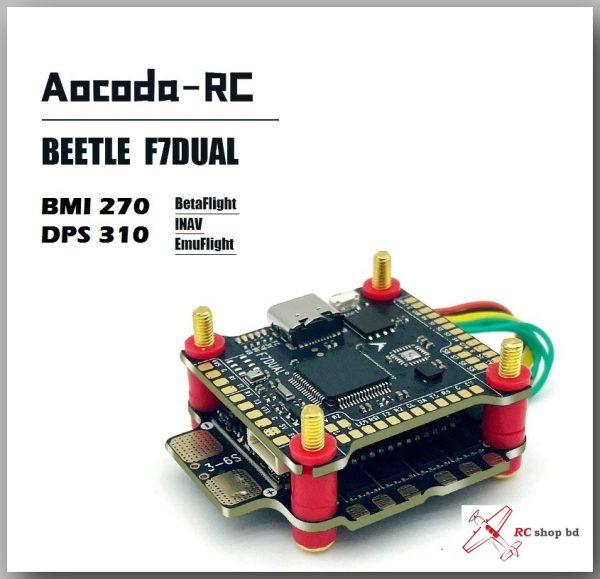

Aocoda-RCF7DUAL flight controller BMI270 30.5MM 3-6S BEC Betaflight is the latest flight controller from Aocoda-RC
Aocoda-RC F722Dual
MCU：STM32F722RET6
IMU:MPU6000/BMI270 (Optional)
barometer:DPS310
BlackBox:16MB
Motor output:8CH motor output
UART: 5CH serial ports
Input voltage:12V-25.2V(3-6SLipo)
BEC：5V/2.5A,9V/3A
Dimensions：37mm×37mm
Mounting hole: 30.5mm×30.5mm
Weight：9.0g
Firmware:AOCODARCF7DUAL
Package Includes:
1 x Aocoda-RC F7 DUAL Flight Controller
4 x Shock Absorber
2 x 8 pin Jumper Cable
