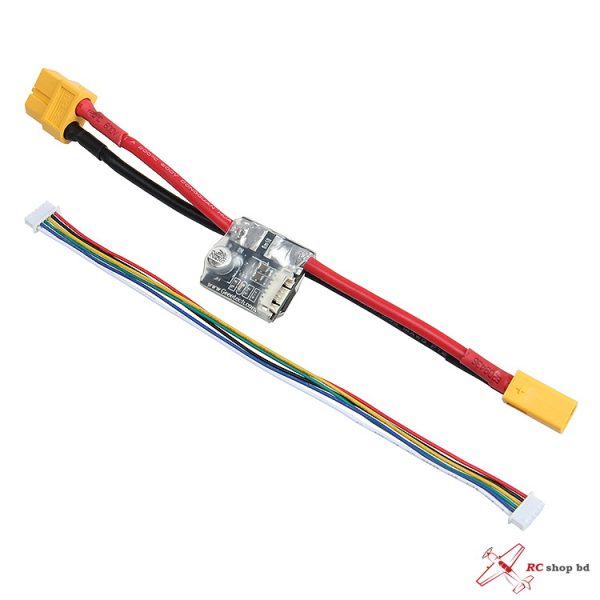

APM Pixhawk Power Module With XT60
599.00 ৳
In stock
APM Pixhawk Power Module With XT60 and BEC
Specifications:
APM Pixhawk Power Module With XT60 is a simple way of providing your APM and pixhawk with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
Used to detect the battery voltage and the battery current, flight control board receives two signals, calculate the remaining battery power, estimate the remaining flight time. In addition the module also comes with BEC function, you can output 5.3 DC, 3A maximum continuous current for the flight control board to provide a stable power supply. Another signal cable connectors are used in Japan original fittings, non-domestic joint, so APM flight control board and reliable connection between the power supply module.
Voltage and current measurement configured for 5V ADC.
Switching regulator outputs 5.3V and 3A max.
6-pos DF13 cable plugs directly to APM or Pixhawk’s connector.
Note: The Power Module is only designed to power APM and Pixhawk’s , a RC receiver and APM accessories (GPS, 3DR radio). It isnotdesigned to power servos. Use your aircraft’s own ESC/BEC for that.
The maximum input voltage 20V, maximum current measurable 90A, to achieve the control panel on battery power and voltage monitoring. The design parameters of voltage and current detector design parameters consistent with 3DR official ground station (mission planer) settings can be set directly refer to the official Wiki.
Type: Module
Accessory Type: Hobby Parts
Model: Hobby Parts
Max Input Voltage: 30V
Max Current Sensing: 90A
Size: 25mm x 21mm x 9mm/0.98″ x 0.83″ x 0.35″ (Approx.)
Package include:
1 x Power Module With XT60 Connectors
1 x P Cable 150mm
