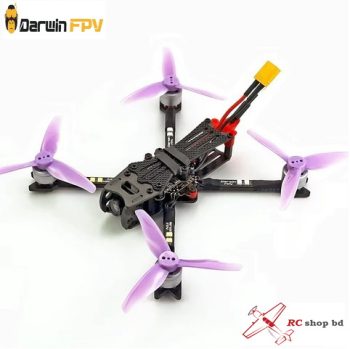

DarwinFPV Baby Ape 3″ Freestyle FPV Racing Drone

DarwinFPV Baby Ape 3″ Freestyle FPV Racing Drone

Introducing the game-changer in your flying experience – the Baby Ape 3″ Quad from DarwinFPV! This little dynamo is where affordability meets top-tier tech specs, all geared to have you ruling the skies without burning a hole in your pocket. Hold onto your goggles because this is going to get thrilling!

Imagine soaring through the clouds with a 3″ quad that’s as innovative as it is pocket-friendly. The Baby Ape 3″ Quad is a reality that shatters the myth that quality and affordability can’t coexist. Crafted with meticulous attention to detail, the Baby Ape is a streamlined beast just waiting to burst into the skies!

The heart of this beast is its Motors and All-In-One (AIO). With an Input Voltage of 1-3S and an outstanding 4300KV, you’re guaranteed to experience lightning-fast responsiveness. The STM32F411 MCU and MPU6000 Gyro lend a flawless stability, making it perfect for beginners and pro FPV pilots alike. And did we mention its peak current of 17A? Now, that’s power!

Why wait? Unleash your flying potential with the DarwinFPV PNP Baby Ape 3″ Quad. It’s ready to take the FPV world by storm!

Description:
Brand: DarwinFPV
Item Name: Baby Ape 142mm 3″ FPV Drone
Color (propeller) : Purple
Receiver: Without Receiver
Camera: Darwinfpv 700TVL
Weight: 71.6g

Frame:
142mm Racing Frame Kit
Wheelbase: 142mm
Frame Arm Thickness: 2.5mm
Other Thickness:1 .5mm
Frame Kit Material: 3K Carbon Fiber

Motor:
1104 4300KV 2-3S Brushless Motor
KV: 4300KV
Lipo cell: 2-3S (Not included)
Weight: 6.0g
Shaft: 1.5mm

ESC:
AIO 4 IN115A BLHeli S ESC
Input voltage: 1-3SLIPo
Continuous current: 15A
Peak current:17A (10S)
BEC output: No
MCU: 48MHz EFM8BB21F16G
Protocol: DSHOY/Oneshot/MultiHhot
BLHeli-S Firmware target: S-H-50
Telemetery: No
Current Sensor:No
Main control chip:EFM8BB21
Firmware upgrade: Supports Dshot600 Oneshot125
MOS: 3*3

Flight Controller:
F411 AIO Flight Controller
Main control chip: STM32F411
Sensor: MPU6500
Integrated OSD
PPMDSM/IBUS/UAR share: UART1-RX
Mounting holes distance: 25.5*25 .5mm
Supports Betaflight firmware
Baro: No
Black Box: No

Camera:
Darwin700TVL Camera: (Baby Ape)
Resolution:700TVL
Lens: 1.8mm
Input: 3.5-5V
TV System: PAL/NTSC

Video TX:
5.8G 40CH 0mW/25mw/200mw Switchable VTX
Supports TBS SmartAudio
Transmitting Power: 0mW/25mW/100mW/200mW switchable
Channel: 40CH
Full Video Format: NTSC/PAL
Input Voltage: 7V~24V
Power Dissipation: +12V/600MW
Size: 25x20x6mm
Weight: <3.2g (Except Antenna)
With Copper Pipe Mini Antenna (Ipex Antenna)

Propeller:
3016 3-Blade Propeller
Material: PC
Mounting Hole: 1.5mm
Center Thickness: 5.5mm
Quantity: 2 pairs
Weight: 1.18g a pair

Recommend:
1. Lipo Battery 2-3S 400-500mah (Not included)
2. Remote controller and micro Receiver (Not included)
3. FPV receiver (Not included)

Package Included:
DarwinFPV Baby Ape (Darwin700TVL Camera)
1 x DarwinFPV Baby Ape 142mm 2-3S 3 Inch FPV Racing Drone Without Receiver
1 x Set Screw
1 x Battery Strap
5 x Cable Tie
