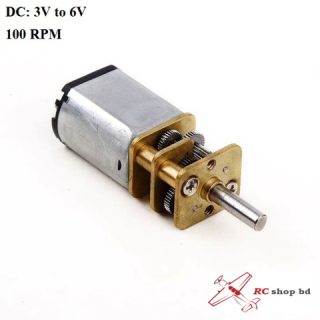

DC3-12V N20 Gear Motor & Mount Bracket & 43mm Wheel
350.00 ৳
In stock
DC3-12V N20 Gear Motor & Mount Bracket & 43mm Wheel
Specification:
N20 Gear Motor:
Shaft diameter: 3MM, D-axis
Shaft length: 10MM
Voltage: 6V (range: 3-12V)
No-load speed: 60RPM / 100RPM
Torque: 60RPM = 1KG.CM; 100RPM = 0.4KG.CM
Rubber tire:
Diameter: 43MM
Thickness: 19MM
Aperture: D type 3MM
Material: imported rubber + ABS engineering plastics
N20 Motor mounting bracket:
Material: ABS
Fixing hole: 4mm
Fixing hole center distance: 27mm
Length: 24mm
