DT830D Digital Multimeter
230.00 ৳
In stock

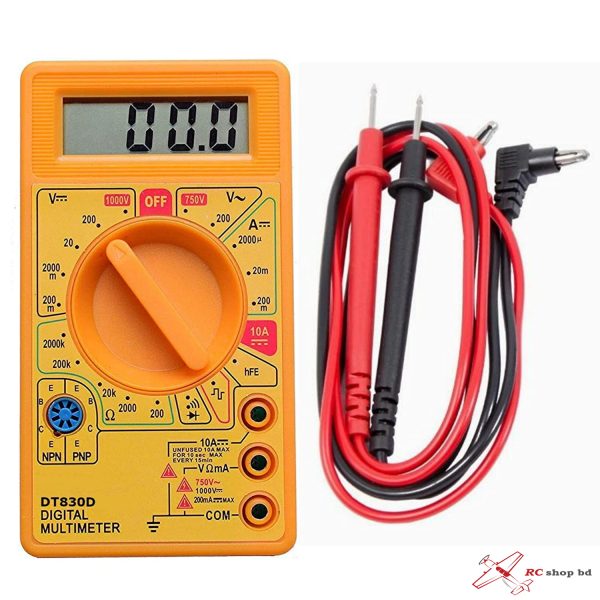

DT830D Digital Multimeter
DT-830D Compact meter checks continuity of wires, fuses and electrical system components. Performs measurements of volts, amps, ohms and transistor gain (hFE). Can be used to test diodes. Low impedance meter can be used on automotive computer circuits. Rotary switch. Overload protection. Removable leads. 9 volt battery powered. 7 functions and 19 ranges Covers AC or DC voltage, resistance, DC amps, battery, diode and transistor Two 575mm test leads Diode and fuse protected Super sensitive meter
Features:
1.Multifunction: Can measure AC/DC voltage, DC current, resistance, diode, hFE, continuity and square wave output.
2.Portable design: It’s small and can be put into pocket, easy to carry.
3.Wide range of applications: It’s a perfect tool for the laboratory,factory and home.
4.Clear to read: With large LCD display, convenient to read data.
5.More advantages: Low battery indication, continuity buzzer and overload protection.
Specifications:
Model: DT-830D
Color: Black/Yellow (ranndom)
Display Counts: 1999
Diode Test: Yes
hFE Test: Yes
Continuity buzzer: Yes
Square wave output: Yes
Low battery indication: Yes
Auto polarity display: Yes
Overload Protection: Yes
DC Voltage: 200mV/2V/20V/200V/1000V 0.5%
AC Voltage: 200V/750V 1.0%
DC Current: 2000uA/20mA/200mA/10A 1.8%
Resistance: 200/2K/20K/200K/2000K 1.0%
Power: 9V battery (included)
Product Size: 125X70X25mm
Product Net Weight: 109g
Note:
Plug in connector for red (Positive) test lead for current ( between 200mA and 10A ) measurement. There is no fuse for “10A” jack. To use safely, each measurement can not last for more than 10 seconds, and the interval between each measurement must be more than 15 minutes.
Diode: Testing Voltage about 2.8V, current about 1mA. The approximate forward voltage drop in mV will be displayed.
Buzzer: The buzzer will sound when it is less than about 50 ohm.
Signal output: square wave ( 50Hz ) or sine wave ( 1000Hz ). Level output: 5Vp-p
Package Include:

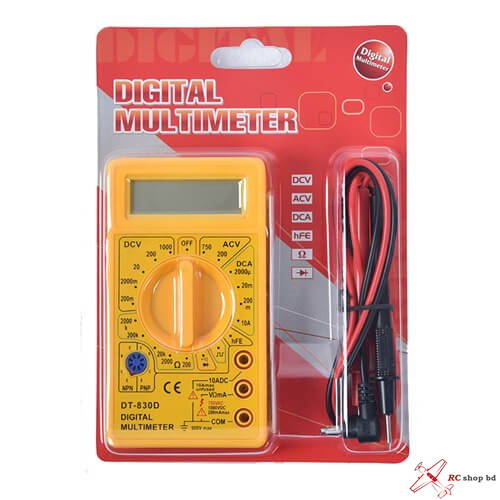

1 x DT830D Digital Multimeter AC/DC Voltage (Black/Yellow)
