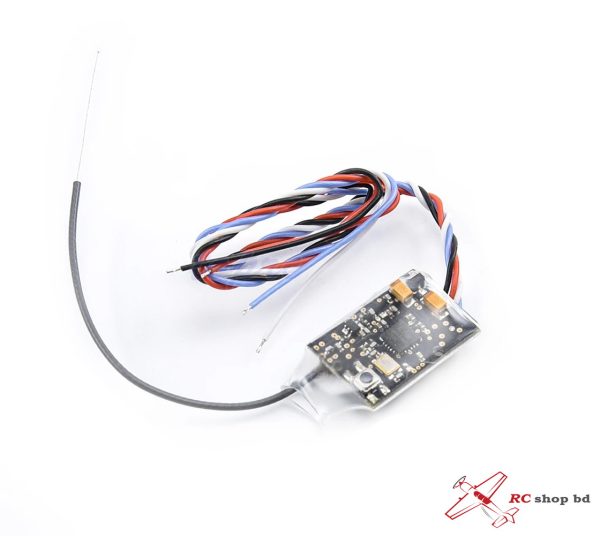

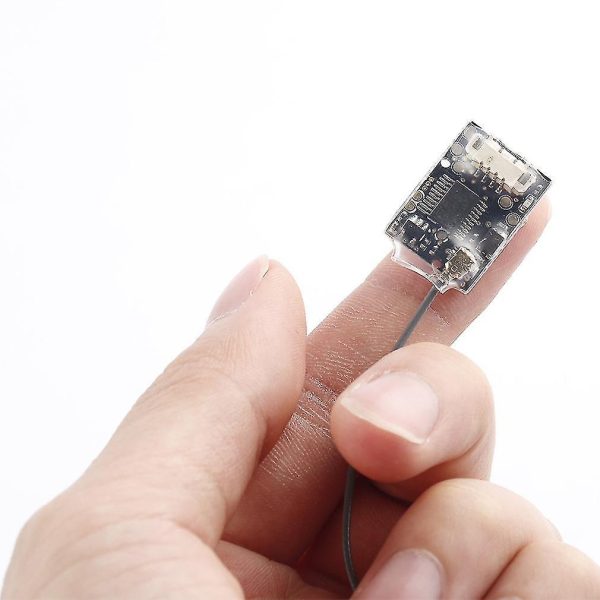

Flysky Mini Receiver 2.4GHz PPM & SBUS
1,399.00 ৳
Out of stock
Flysky Mini Receiver 2.4GHz PPM & SBUS For Flysky Radio Remote Control Transmitter
Description:
Channel: 8 (PPM), 18 (i-BUS)
Model type:Multi-rotor
RF range:2.408-2.475Ghz
Bandwidth:500KHz
RF channel:135
RF power: None
RX sensitivityL-92dbm
2.4GHz system: AFHDS 2A
Modulation type:GFSK
Low voltage alarm: None
DSC port:PPM/I-BUS/S.BUS
Chargeable:None
Antenna lenght:26mm(not including brass contacts)
Power input:4.5V-6V
On-line update:none
No ground interference( transmitting and receiving 1m from the ground): 400m
Operating current:40mA
Channel delay: ＜15ms
Size:20*14*5.3mm
Weight: 2g
Black: GND
Red: VCC 4.5V-6V
White: SUBS
Blue: PPM
Package Included:
1PCS Flysky Mini Receiver
