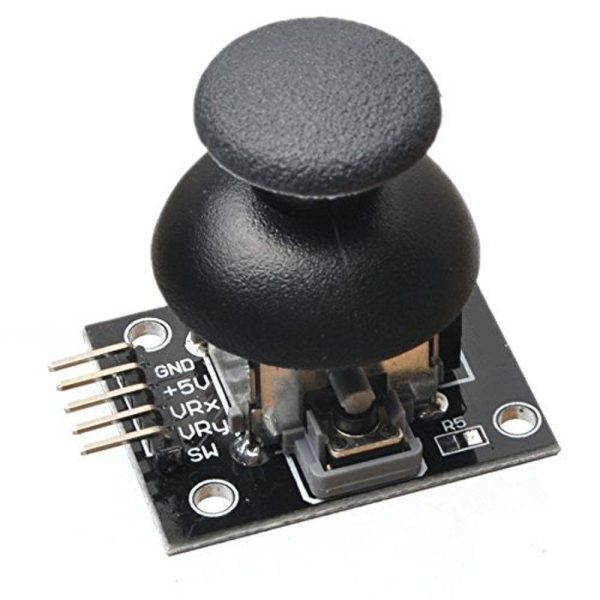

Joystick Module 2-Axis 5 Pin

110.00 ৳

In stock

Joystick Module 2-Axis 5 Pin

This thumbstick is an analog joystick – more accurate and sensitive than just ‘directional’ joysticks – with a ‘press in to select’ button. Since it’s analog(10k potentio meters), you’ll need two analog reading pins on your microcontroller to determine X and Y. Having an extra digital input will let you read the switch.

Features

  • Two independent Potentiometer: one for each axis ( X and Y)
  • Auto return to center position
  • Low weight
  • Cup-type Knob
  • Compatible to interface with Arduino or with most microcontrollers



Technical Specifications

  • Operating Voltage: 5V
  • Internal Potentiometer value: 10k
  • 2.54mm pin interface leads
  • Dimensions: 1.57 in x 1.02 in x 1.26 in (4.0 cm x 2.6 cm x 3.2 cm)
  • Operating temperature: 0 to 70 °C

Internal Structure

The below image is the internal diagram of a Joystick Module. It consists of two Potentiometer, each for one axis (X and Y). Both 10k potentiometer are independent to move in their particular direction. SW (Switch) pin is connected to a push button internally.

Joystick Module Internal Structure



Where Joysticks Are Used?

When we listen the word “Joystick” we think of Game controllers. If we talk about Electronics there are many useful application of Joystick. These type of module are mostly used in Arduino based DIY projects and Robot Control. As we know, the module gives analog output so it can be used for feeding the analog input based on direction or movement. It can also be connected to a movable camera to control its movement.

How to Use Joystick?

As used in many projects, the interfacing diagram of Joystick Module with the Arduino is given below. It helps you to connect the joystick Module with Arduino and get the analog output based on the direction of movement of Joystick Knob.

Joystick Module interfacing with Arduino

After Interfacing Joystick Module with the Arduino, we will get the analog output. The output range is fixed for each direction. The below image shows, the value of analog output for X and Y axis based on the movement of Joystick Module in all four directions (+X, -X, +Y, -Y). You will also get some analog value when moving the knob diagonally.

Joystick Module Analog Output

Application

  • Camera Pan/Tilt Control
  • Game Input/Control
  • Robot Control
  • Analog Input of Parameters
  • Widely use in DIY projects

Package List:

1 x Joystick Module 2-Axis 5 Pin
