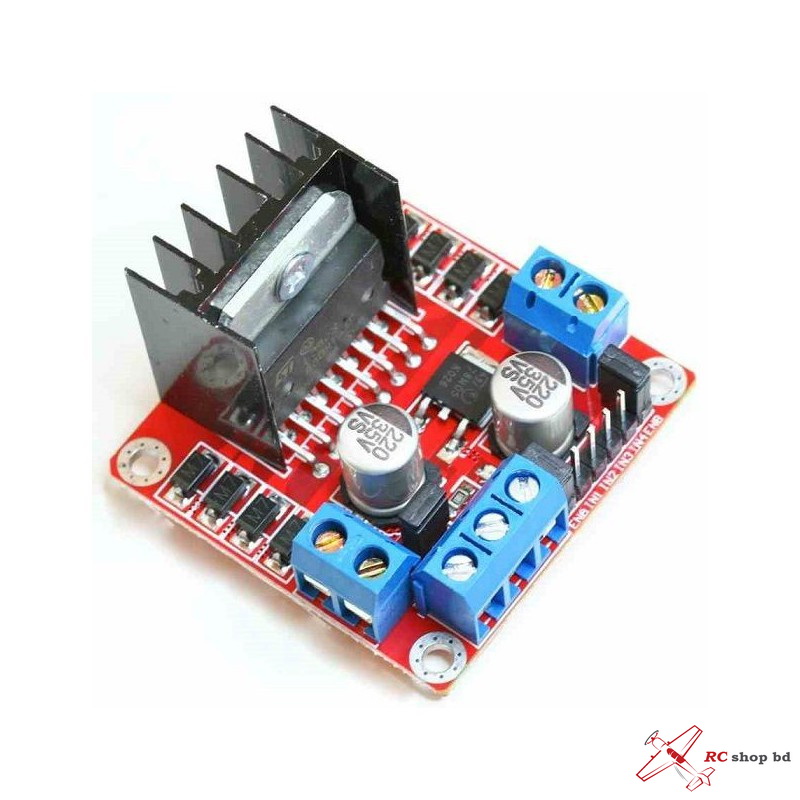

L298N H-Bridge Dual Motor Driver

170.00 ৳

In stock

L298N H-Bridge Dual Motor Driver

Description:
L298N DC Motor Driver Red Color Module
High working power to 46v,large current can reach 3A MAX and continue current is 2A, power to 25w. Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors. Built-in 78M05,get power from drive power,however, when drive power over12V, please use the external 5v power as power supply. Large capacity filter capacitance,afterflow protection diode, more stable and reliable.

Specification:
Chip: L298N
Logic voltage: 5V
Logic current 0mA-36mA
Storage Temperature: -20 ℃ to ℃ to +135
Operating mode: H-bridge driver (dual)
Drive voltage: 5V-35V
Drive current: 2A (MAX single bridge)
Maximum power: 25W
Dimensions: 43x43x27mm

Features:
Driver chip: L298 dual H-bridge driver chip.
Terminal driver part of the supply area VMS: +5 V ~ +35 V.
Drive part of the peak current Io: 2A / Bridge.
Logical part of the terminal power supply range Vss :4.5-5.5 V.
Logical part of the operating current range: 0 ~ 36mA.
The control signal input voltage range: 4.5-5.5V low 0V high.
Maximum power consumption: 20W.
Storage temperature: -25 ~ +130.

Applications:
Motor driver Circuit.
Robot rover motor control.
DIY projects requiring motor driver.

Package include:
1x L298N DC Motor Driver Red Color Module
