Radiolink R9DS 2.4G 9Ch Receiver

2,000.00 ৳

In stock

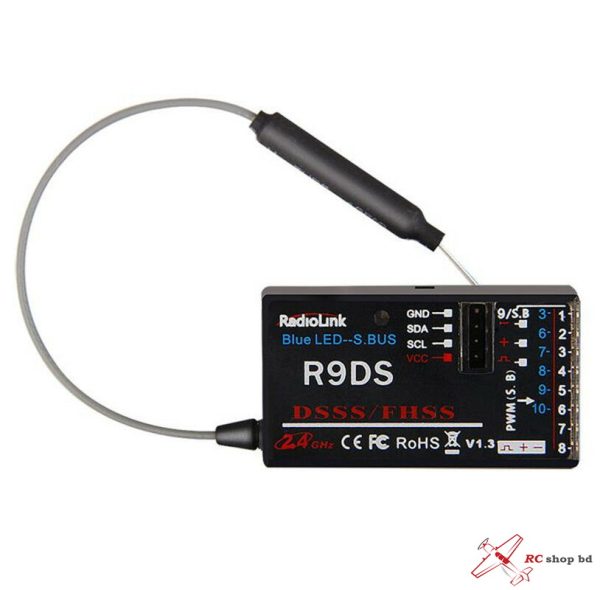

Radiolink R9DS 2.4G 9Ch Receiver



Radiolink R9DS, 2.4G 10 channels receiver, DSSS and FHSS spread spectrum working synchronously, use for Radiolink transmitters AT9S, AT9, AT10II and AT10. SBUS and PWM signal possible working at the same time.

Two signal working mode:
(1) PWM signal output working mode：red LED indicates PWM signal output, 9 channels totally.
(2) SBUS signal output working mode: blue/purple LED indicates SBUS signal output, 10 channels
totally.
SBUS and PWM signal possible working at the same time with SBUS signal output working mode.
CH9 output SBUS signal, the original CH1 output CH3 and original CH2 to CH6 output CH6 to CH10
PWM signal at the same time.

How to match code with transmitter:
1. Place the transmitter and the receiver close to each other within 1 meter.
2. Turn on the transmitter, then power on the R9DS.
3. Connect CH3 of R9DS to ESC or flight controller or servo.
4. There is a black button on the R9DS, use a thin stick or pen press the binding button in
one second until the receiver light starts blinking and release, after about 8 times blinking,
match code success when receiver signal LED always on.

Specification:

1) Channels:
9 channels: output 9 channels PWM signal, with red LED.
10 channels: output 10 channels signal, support SBUS and PWM signal output
synchronously, with blue LED.
2) Working voltage: 4.8-10V
3) Working current: 38-45mA（input voltage: 5V）
4) Size: 43*24*15mm
5) Receiver integrate telemetry sensor including signal strength and voltage. Support extended engine voltage telemetry module PRM-01 and module PRM-02 can feedback GPS info, Speed, voltage etc. on AT9/AT9S/AT10/AT10II display when work with flight controller APM, PIX or MINI PIX.
6) 4096 section precision, 0.25us per section, servo anti-shake rudder.
7) MINI receiver, just need one cable if use SBUS signal.

Package Included:
1x RadioLink R9DS receiver

Guarantee: 7 days replacement guarantee (Damaged, Burned or Change of Mind not Applicable)
