Radiolink SE100 v2 GPS Module with Stand
4,499.00 ৳
In stock
Radiolink SE100 v2 GPS Module with Stand
Specification:
Brand name: Radiolink
Item name: M8N GPS Module
Positional Accuracy: 1m precision when working with concurrent GNSS, 2.5m precision when working with single
GNSS.
Velocity precision: 0.1m/s
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G
Max update rate: up to 18Hz
Sensitivity
Tracking & Nav.: -167dBm; Reacquisition:-163dBm; Cold start:-151dBm; Hot start:-159dBm
Time to first fix: Cold start: 26s, Hot start:1s.
Power supply: voltage 3.3VDC+-5%, current 50~55mA
Ports:
A. GPS UART interface, baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K
B.Geomagnetic I2C interface
Version: v2
Feature:
Top Configuration
-GPS decoder chip: Radiolink M8N v2 GPS, with u-blox UBX-M8030(M8), 72-channel, MMIC BGA715L7 from Infineon
and 13 years of RF experiences, is much better than single GNSS 7N.
A.Concurrent reception of GPS/QZSS L1 C/A,GLONASS L10F, BeiDou B1
B.SBASL1 C/A:WAAS, EGNOS, MSAS
– Antenna : 2.5dbI high gain and selectivity ceramic antenna
– Power amplify IC: MMIC BGA715L7 from Infineon
– Filter: SAWF(Surface acoustic wave filter) form Murata
– Geomagnetic: HMC5983
Professional Design
Radiolink M8N v2 GPS, benefits from professional wireless experiences of Radiolink engineers, exceed the limitation
of IC sensitivity index from circuit schematic design to PCB placement.
1 meter position accuracy, positioning in 23 seconds and valley stationkeeping ability make Radiolink GPS much
better than the similar products.

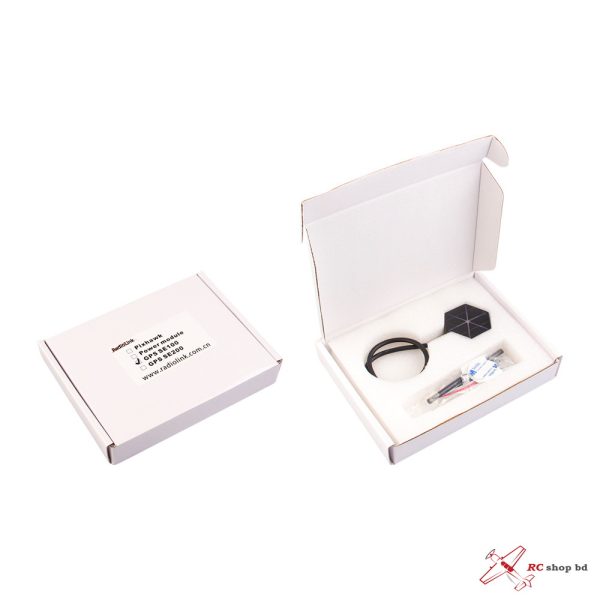

Package Included:

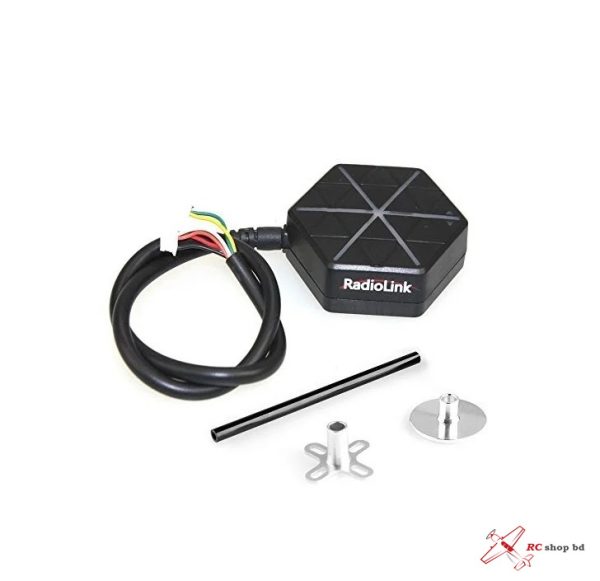

1 X Radiolink SE100 v2 GPS Module with Stand
1 X GPS Stand
